Setup
When setting up your device, your mobile app and Canary device will provide visual and audio feedback to help get your Canary View online. These are some of the cues you may experience during the setup process.
| Light | Color | Means |
| Solid White |
Canary View is booting up. Displayed after plugging in Canary. |
|

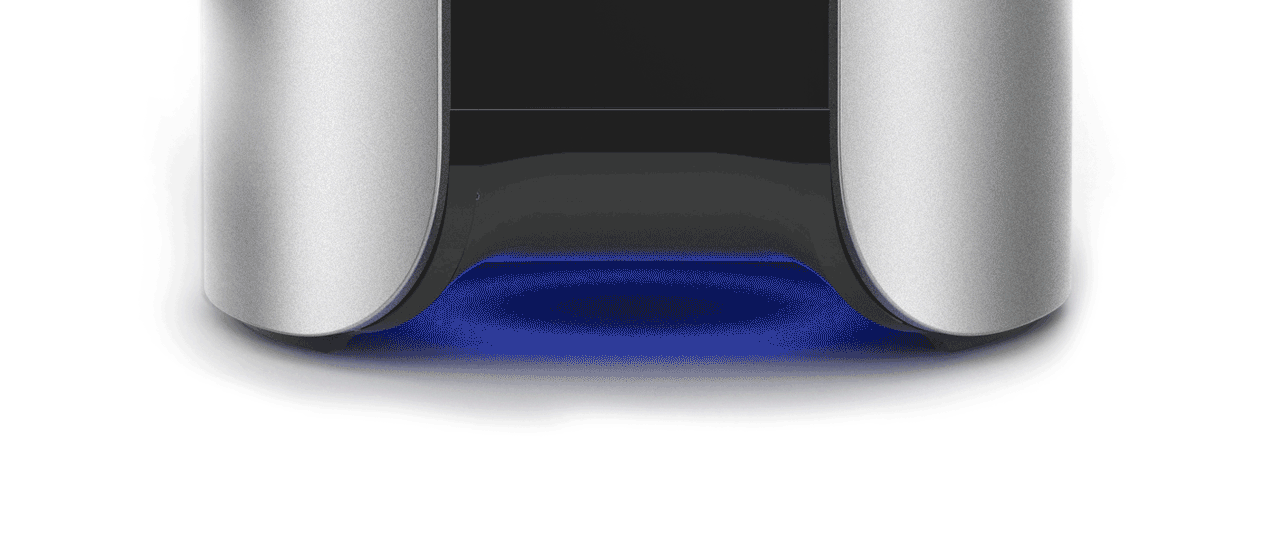

| Solid Blue |
Canary View is ready for setup. |
|
| Pulsing Blue |
Canary View is ready to pair with a device via Bluetooth.
|
|
|
Solid Blue |
Canary View has successfully paired with a device. |
|
|
Pulsing Blue |
Canary View has successfully connected to the internet and is beginning firmware updates. |
|
|
Solid White |
Canary View is downloading and installing the latest firmware. |
|
|
Pulsing White |
Canary View is finalizing setup. |
|
|

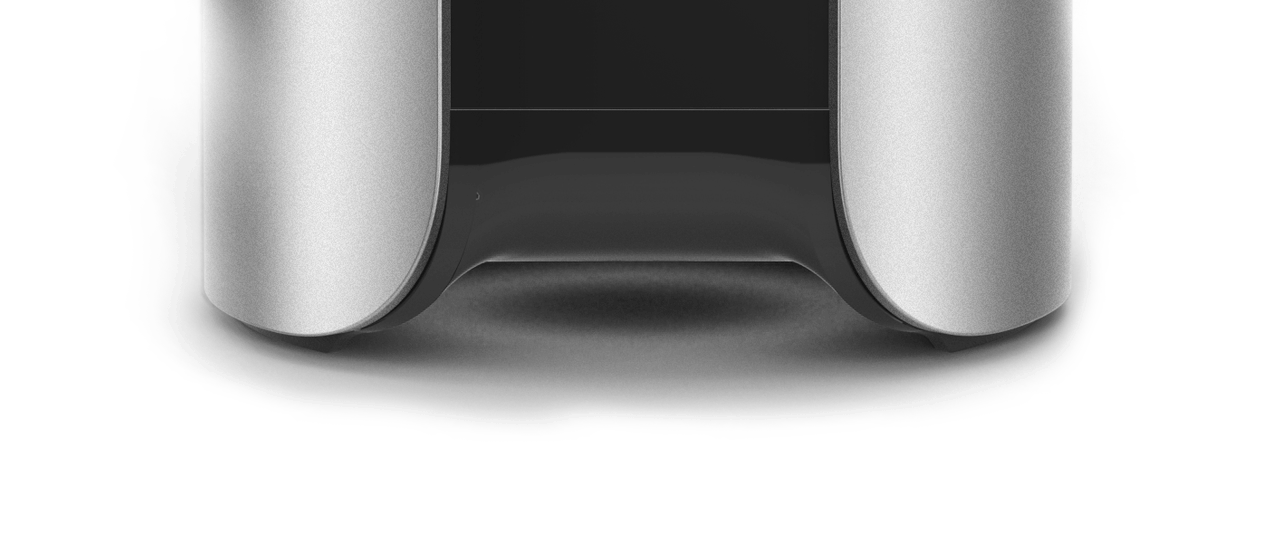

No illumination |
Canary View is setup. |
Normal operation
| Light | Color | Means |
| None | Recording is off or the location is set to private. | |
| Canary View is not connected to power. | ||
| Solid White |
Canary View is ready to record video. |
|
|
Canary View is booting up. |
||
| |
Pulsing White (slow) |
Someone is currently watching live. |
| |

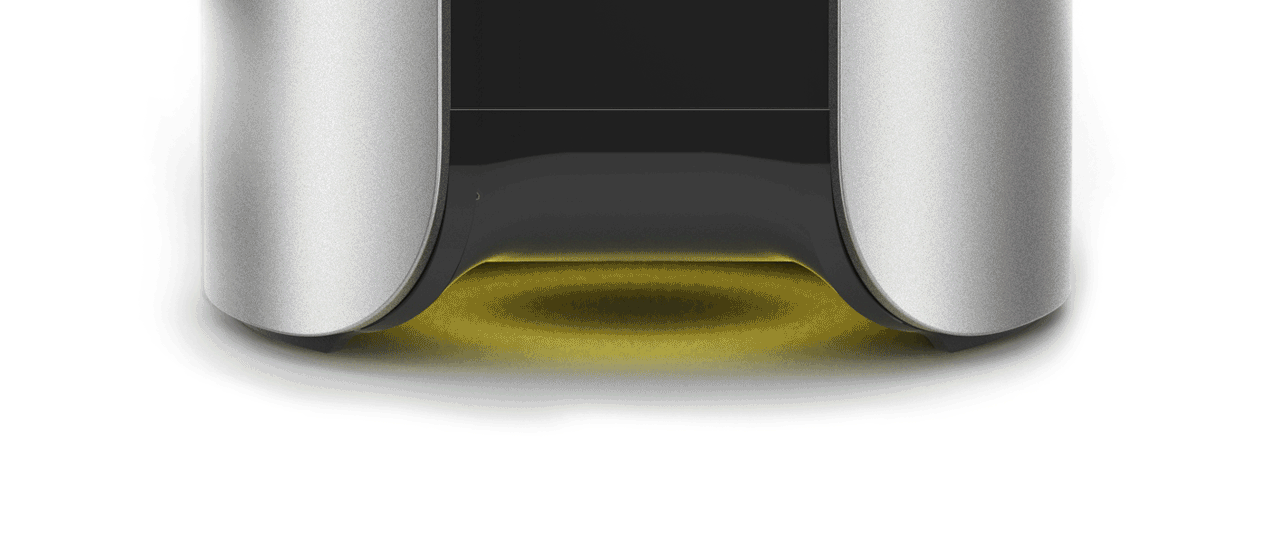

Pulsing Yellow |
Canary View is trying to connect to the Wi-Fi network. |
| Solid Yellow |
No internet connection or unable to connect to the Canary Cloud. |
|
| |
Blinking White (fast) |
Canary View is connecting to the Canary Cloud or to the local network. Note: If your Canary View remains in this state longer than a few minutes, it may be having connection issues. |
| |
Pulsing Red |
Canary View is unable to connect to the internet. Note: Only applicable for firmware versions earlier than 4.0.0 |
|
Changing connection
|
|||||||||
| Light | |||||||||
|
|
|||||||||
