Setup
When setting up your device, your mobile app and Canary Pro will provide visual and audio feedback to help get your Canary Pro online. These are some of the cues you may experience during the setup process.
| Light | Color | Means |
| Solid White |
Canary Pro is booting up. Displayed after plugging in the Canary Pro. |
|
| Solid Blue |
Canary Pro is ready for setup. |
|
| Pulsing Blue* |
Canary Pro is ready to pair with a device via Bluetooth. |
|
|
Solid Blue |
Canary Pro has successfully paired with a device. |
|
|
Pulsing Blue |
Canary Pro has successfully connected to the internet and is beginning firmware updates. |
|
|
Solid White |
Canary Pro is downloading and installing the latest firmware. |
|
|
Pulsing White |
Canary Pro is finalizing setup. |
|
|

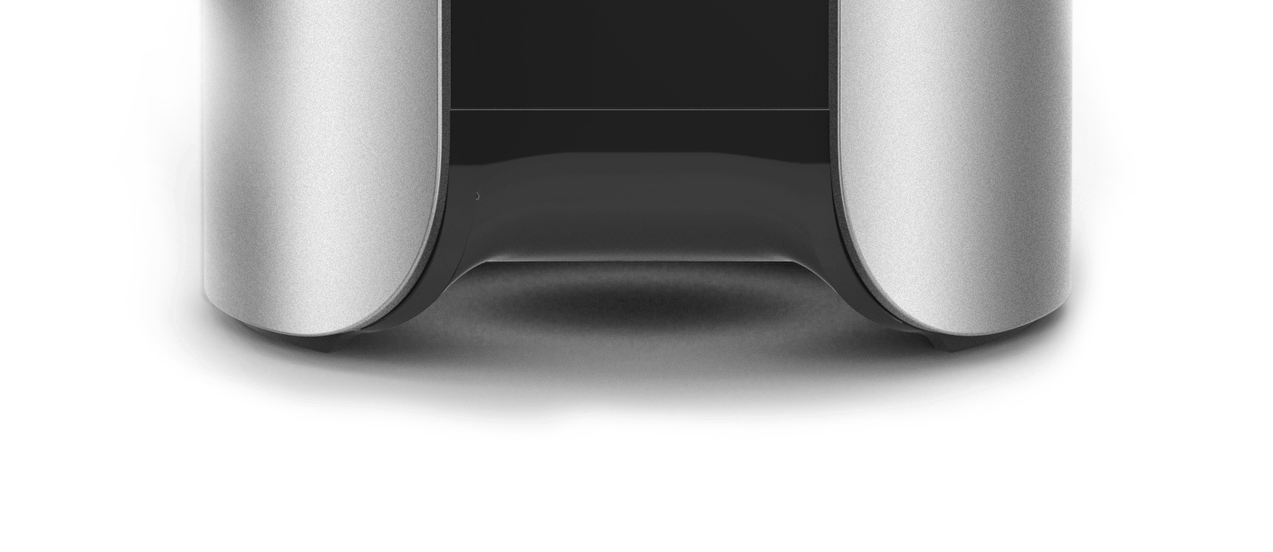

No illumination |
The Canary Pro is setup. |
Normal operation
| Light | Color | Means |

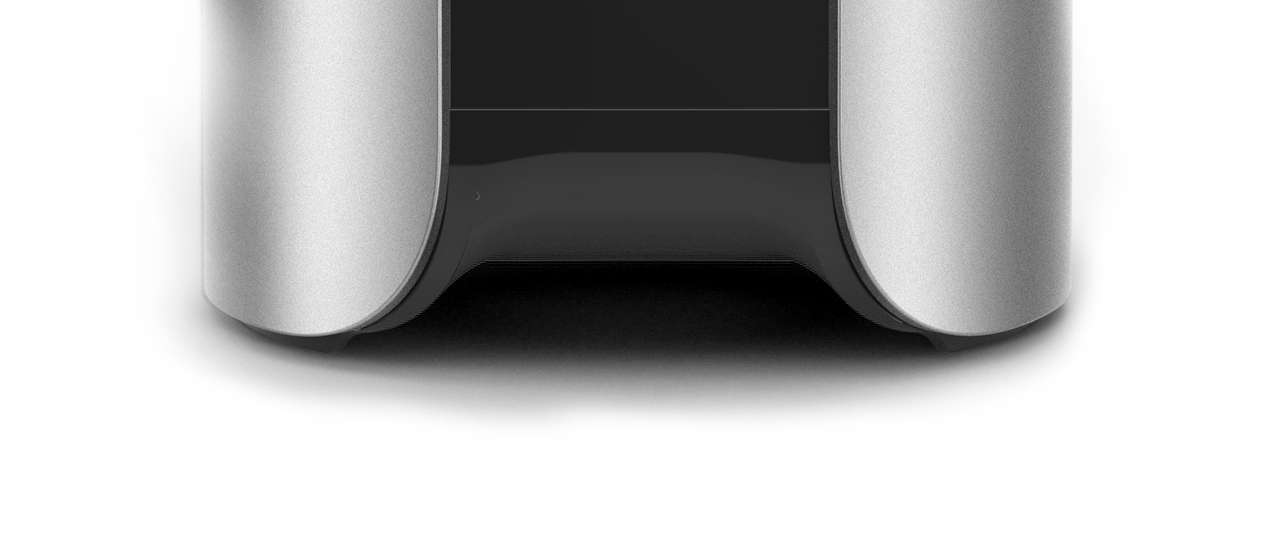

| None | Recording is off or the location is set to private. | |
| Canary Pro is not connected to power. | ||
| Solid White |
Canary Pro is ready to record video. |
|
|
Canary Pro is booting up. |
||
| |
Pulsing White (slow) |
Someone is currently watching live. |
| |

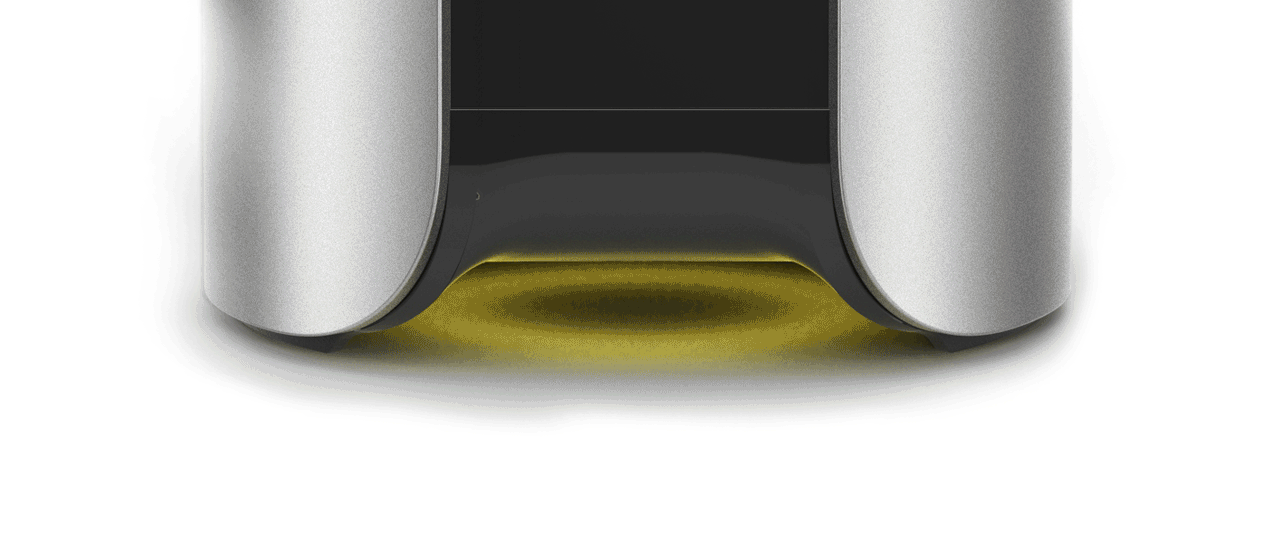

Pulsing Yellow |
Canary Pro is trying to connect to the Wi-Fi network. |
| Solid Yellow |
No internet connection or unable to connect to the Canary Cloud. |
|
| |
Blinking White (fast) |
Canary Pro is connecting to the Canary Cloud or the local network. Note: If your Canary Pro remains in this state longer than a few minutes, it may be having connection issues. |
| |
Pulsing Red |
Canary Pro is unable to connect to the internet. Note: Only applicable for firmware versions earlier than 4.0.0 |
Changing connection
| Light | Color | Means |
|
|
Pulsing Blue | Canary Pro is ready to pair with a device via Bluetooth. |
| Solid Blue and "Connection" sound |
Canary Pro has successfully paired with a device. |
